Project:
Two new build private dwellings, Barnton Park View, Edinburgh
Area:
180m²
Specification:

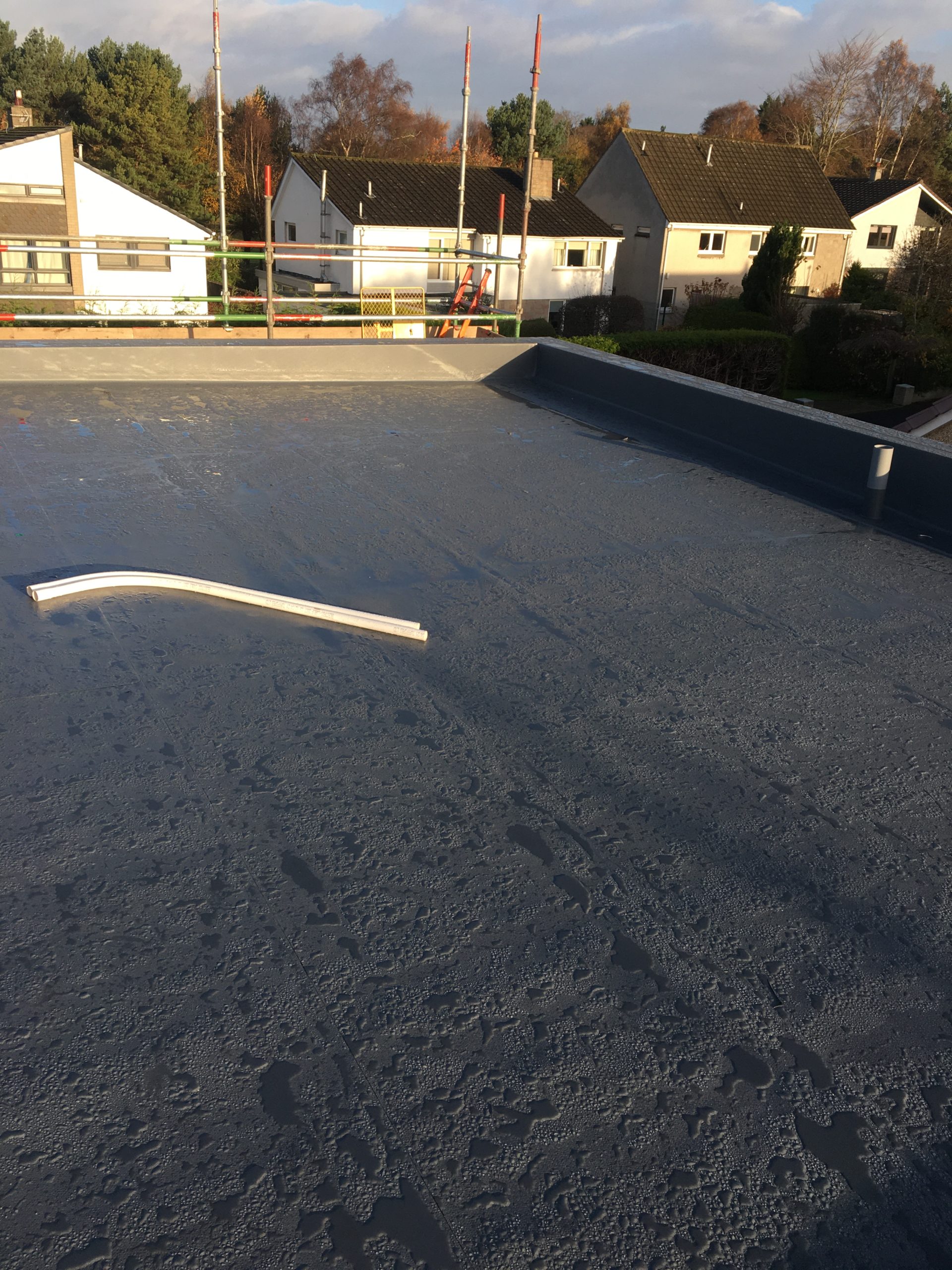

High Level Roof – To new 18mm exterior grade plywood, loose lay Protan (UK) PE vapour control layer, mechanically fix Building Innovations Inno-Fix 150mm PIR foil faced Insulation, mechanically fix Protan (UK) SE 1.2 Single Ply Membrane, including forming all fabricated trims to form membrane cappings / Rainwater outlets / forming gutters / SVP’s / PV swan neck pipes to completion.
Low Level Roof – To new 18mm exterior grade plywood, loose lay Protan (UK) PE vapour control layer, mechanically fix Building Innovations Inno-Fix 150mm PIR foil faced Insulation, mechanically fix Protan (UK) G 1.8 Single Ply Membrane, including forming all fabricated trims to form membrane cappings / Rainwater outlets / forming gutters on completion install Sedum roof coverings

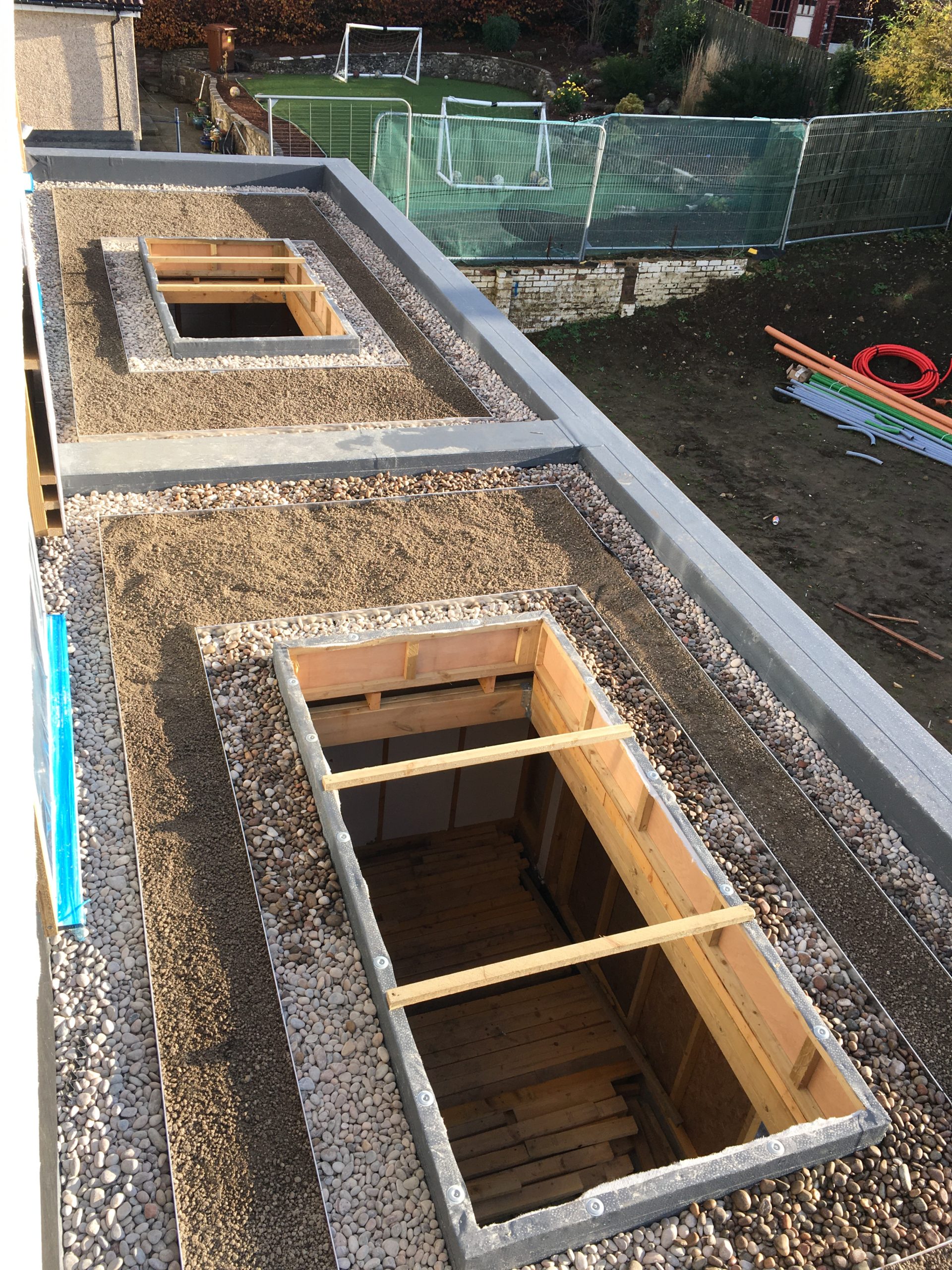

Low Level Sedum – Loose lay 300 gauge filter fleece, Loose lay 25mm drainage board, form vegetation barrier using aluminium slotted trim and 20 to 40 riverwashed pebbles, to completed drainage board loose lay 300 gauge filter fleece, back fill with sedum growing medium to a depth of 80mm, in preparation of the pre-grown sedum blanket to be installed summer 2022.
